THE DUCATI VEHICLE RANGE

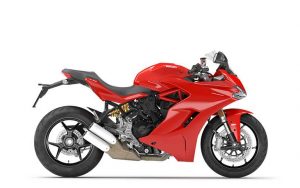

SUPERSPORT S.

ENGINE & GEARBOX

  • Engine Description 937cc, L-Twin Cylinder, Liquid Cooled
  • Fuel System Electronic Fuel Injection System, Æ 53 mm Throttle Bodies with Full Ride-By-Wire
  • Cooling Liquid cooling
  • Displacement 937 cc
  • Maximum Power 110 HP @ 9,000 rpm
  • Maximum Torque 93 NM @ 6,500 rpm
  • Emission Standard Euro 4
  • Compression Ratio 6± 0.5 :1
  • Bore 94 mm
  • Stroke 5 mm
  • Valve Clearance Check 30,000 km (18,000 mi)
  • Maintenance Service Intervals 15,000 km (9,000 mi) or 12 months
  • Primary drive Straight Cut Gears; Ratio 1.84:1
  • Number of Gears 6 Speed
  • Clutch Wet Multiplate Clutch Mechanically Operated, Self-Servo Action on Drive, Slipper Action on Over-Run
  • Gear Ratios 1=37/15 2=30/17 3=28/20 4=26/22 5=24/23 6=23/24
  • Final Drive Chain, Front Sprocket 15, Rear Sprocket 43

BRAKES & TYRES

  • Front Brake 320 mm Twin Semi-Floating Discs, Radially Mounted Monobloc Brembo M4-32 Callipers, 4-Piston, Radial Pump with ABS as Standard
  • Rear Brake 245 mm Disc, 2-Piston Caliper, ABS as Standard
  • ABS
  • Front Tyre Pirelli Diablo Rosso III 120/70 ZR17
  • Rear Tyre Pirelli Diablo Rosso III 180/55 ZR17
  • Front Wheel Y Saped, 3-Spoke in Light Alloy 3.50″ x 17″
  • Rear Wheel Y Shaped, 3-Spoke in Light Alloy 5.50″ x 17″

SUSPENSION & CHASSIS

  • Front Suspension Fully Adjustable 48mm (1.9 in) USD Ohlins Forks
  • Rear Suspension Progressive Linkage with Fully Adjustable Ohlins Monoshock. Aluminium Single-Sided Swingarm
  • Frame Tubular Steel Trellis Frame Attached to the Chylinders Head
  • Exhaust/Muffler Light weight 2-1-2 System with Catalytic Converter and Two Lambda Probes. Twin Aluminium Mufflers
  • Front Wheel Travel 130 mm
  • Rear Wheel Travel 144 mm

DIMENSIONS & WEIGHT

    • Overall Length 2070 mm
    • Overall Width 750 mm
    • Overall Height 1150 mm
    • Seat Height 810 mm
    • Wheelbase 1478 mm
    • Dry Weight 183 kg
    • Kerb/Wet Weight 210 kg
    • Fuel Tank Capacity 16 litres
